Z2 Die-cast HPS/CMH Series

● Completely silent and maximum heat dissipation

● RF shielding

● Full protection

● Soft start technology

● Random start technology

● Automatic frequency adjustment

● Re-strike system

● Lamp compatibility(AUVL/BLV/Philips)

● Compatible with Lumlux digital lighting controller

● Premium 95% reflective aluminum hammertone interior

● Enclosed DE system guarantees excellent focus and conformity

● FCC&CSA / CE certification


Product Detail

FAQ

Product Tags

Technical Parameters:
Output power 600W(HPS) 630W(CMH) Dual 315W(CMH) 945W(CMH) 1000W(CMH) 1000W(HPS)
Input voltage 120-240V, 277V, 277-347V, 347V, 400V 208-240V, 277V, 277-347V, 347V 277V, 277-347V, 347V,400V, 480V
Input current(Max) [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
Input power [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
Power factor 0.97 0.97 0.97 0.97 0.97 0.97
Efficiency 95%@120V 95%@120V 95%@208V 96%@208V 96%@208V 96%@277V
THD <10% <10% <10% <10% <10% <10%
Dimming 40%-110% 50%-100% 50%-100% 50%-100% 50%-100% 60%-115%
Lamp 600W HPS DE 630W CMH DE 315W CMH SE 945W CMH DE 1000W CMH SE 1000W HPS DE
Protection Open circuit, short circuit, over temperature, lamp end of life, over voltage, low voltage
Lamp Recognition
1000W/600W HPS DE 1000W/630W CMH DE 945W CMH DE 315W CMH SE
Environmental Specifications
Working temperature -20℃~ +40℃
Storage temperature -40℃~ +70℃
IP level IP20IP20(IP65 for Ballast)
Application

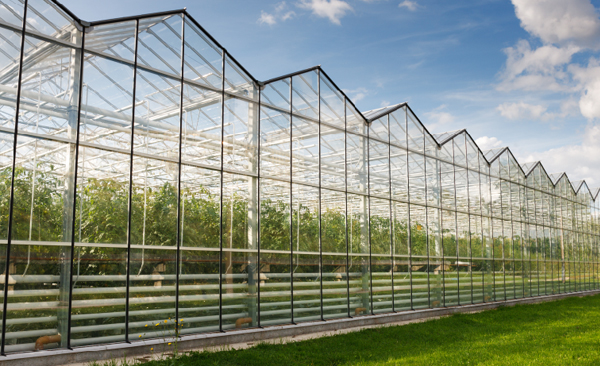

For Greenhouse Lighting

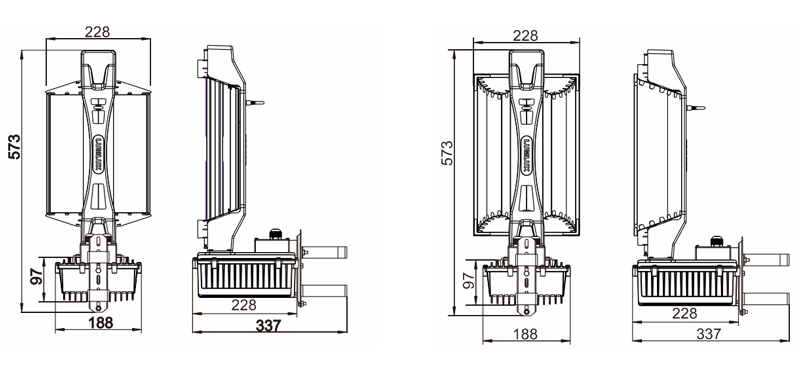

Dimension
